If you're new to woodworking, getting a good collection of drill bits is essential to completing your projects quickly. It is critical to understand the many types of bits, such as wood and metal boring bits, brad point drill bits, spade bits, and Forstner bits, to select the best bit for the job. The correct drill bit increases productivity and only increases productivity but also results in cleaner cuts and finishes.
Take the time to investigate which woodworking drill bits are appropriate for your woodshop needs, because they will make or break your woodworking projects.
Every Woodworker Should Have These Drill Parts and Accessories.

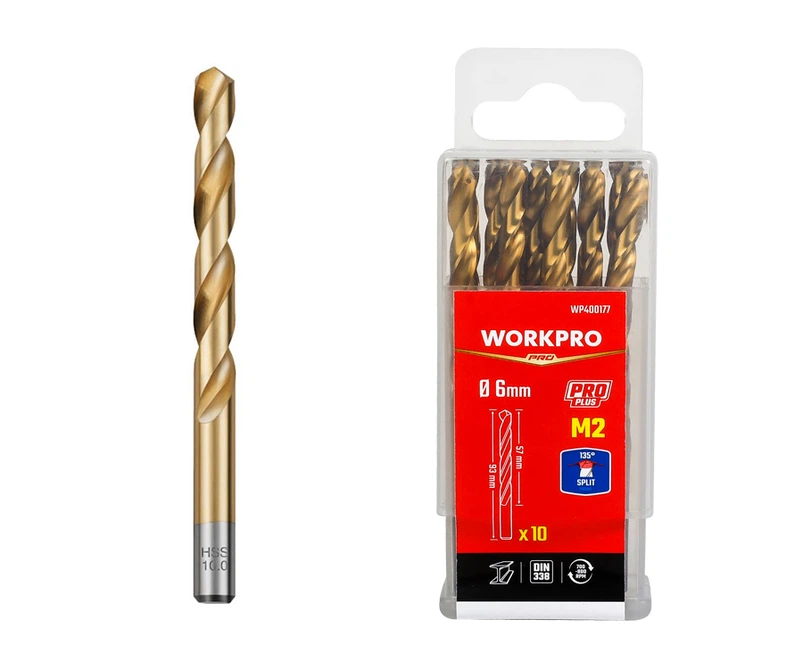

1. Twist Bits
Twist drill bits are versatile drill bits that are commonly seen in wood shops. These utility bits, which have a pointed tip, can be used to drill into materials such as wood, plastic, and metal with little to no tear-out. They can, however, wander or wobble if a good pilot hole is not used to begin with, especially when drilling at an angle. For enlarging existing holes, twist bits are advised.
Click for more: WORKPRO M2 HSS Ground Twist Drill Bit
2. Brad Point Bits
Although they may appear comparable at first glance, Brad-point bits have distinct characteristics that make them superior for woodworking. These pieces have diameters ranging from 18 to 1 inch.
Click for more: WORKPRO Woodworking Twist Drill Bits
Several aspects to be mindful of:
• The pointed spur at the bit's top helps to center it before drilling.
• On the tips of flutes are also sharp spurs that prevent the wood from tearing as the bit penetrates and help remove chips.
• The finest bits for making perpendicular holes are those with a brad point. • When creating angled openings, they may become misaligned.
• Also, enlarging an existing hole can be difficult due to the tip's spur, which makes centering in the existing hole difficult.
3. Forstner Bits
Forstner bits produce clean, flat-bottomed holes, which are ideal for cabinet components and large-diameter holes. In addition, they are effective for overlapping mortises. The cutting edge along the perimeter of these bits efficiently shears wood while simultaneously producing a flat bottom. It is recommended to use a Hoover alongside the Forstner bit when drilling deep cavities to prevent wood shaving buildup and clogging.
Click for more: WORKPRO TCT Forstner Bit
4. Combination Countersink Bits
These combination countersink bits are ideal for creating a pilot hole for screws and will make rapid work of your projects. Not only does it create space for the screw shank, but, if necessary, it also counterbores while maintaining a flush wood surface. By adjusting the collar to accommodate different screw lengths, you'll be happy to have this type of bit on hand, as it can accommodate multiple sizes that correspond to screws of varying diameters.
5. Self-Centering Bits
Self-centring bits are straightforward to use and expedite the process of drilling pilot holes when installing hardware. There are a variety of sizes available, depending on your needs. They feature a spring-loaded housing that is also sized to fit the screw hole on a hinge leaf; this retracts as you drill, ensuring that your pilot hole is always precisely centred. Fasteners will always be completely seated in their intended countersinks, and hinges will be positioned precisely where they should be!

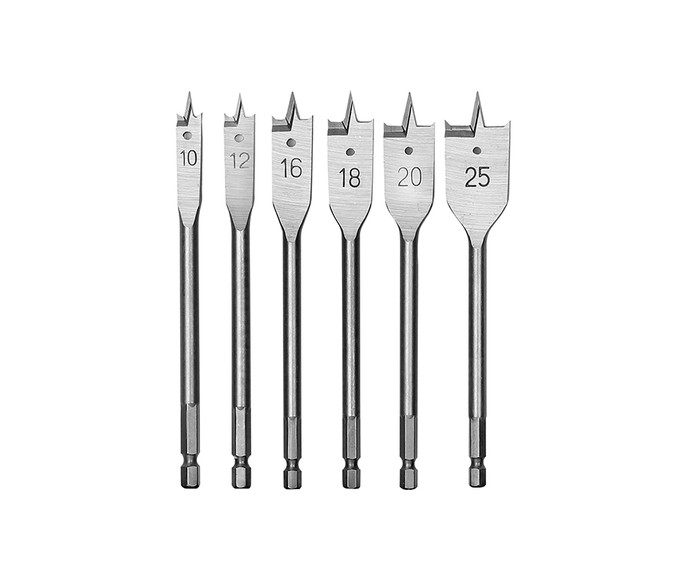

6. Spade Bit
When it is necessary to drill holes in unfinished wood, spade tools are the ideal choice. As with other bits, a centre point guides the bit as it drills and spurs on the outside of the bit to reduce tear-out around the opening. These pieces are available with spade widths ranging from 14 to 12 inches. Be sure to have support material on hand while drilling to prevent blow-out when departing through the board.
Click for more: WORKPRO Wood Spade Drill Bit Set
7. Drill Gauge
Utilizing a drill gauge to maintain your woodworking drill bits is the most effective method. This convenient device not only measures the size of the drill bit precisely, but also helps identify any deterioration on the cutting edges. With a drill gauge, woodworkers can verify that their drilled patterns match the plans precisely, ensuring that no wood is squandered and that their woodworking projects turn out exactly as planned!
Unlock Your Woodworking Potential with Drill Parts of the Highest Quality from WORKPRO Tools. We at WORKPRO Tools believe that woodworking should be a pleasurable and rewarding experience. Our high-quality woodworking drill bits will help you maximise your woodworking projects with holes that are always precise and tidy.
Our assortment of drill bits consists of Brad-point bits, Forster bits, and combination countersink bits, among others. Whether you're a novice or a seasoned woodworker, our drill bits and sets are the instruments you need to bring your project to life. We are aware that having the proper tools can determine the success or failure of woodworking endeavours. Contact us today to learn more about our woodworking tools as well as our other hand tools, power tools, and specialised equipment!
